battleaxe m4 magwell conversion on jg g36c issue

[Reaver]

Just got my magwell conversion and encountered an issue with mating it to my jg g36c. The feed port from the magwell is about 1/4" t tall, along with a couple other fitment issues. Long story short, with carefully application of a file it fits perfect now a feeds perfectly.

[Orwell]

A good note. Thanks! Pictures?

[Reaver]

I will have pictures coming soon. Pain in the *** to link to photo bucket and here with my cheapo android. They will be up tomorrow.

[Reaver]

sorry about the delay, had some issues come up.

The hop up chamber/assembly on the JG G36c. The mag feed port as can be seen here protrudes roughly 1/4"-1/2"


After comparing the Battleaxe m4 conversion magwell, I noticed that it came pre molded with a feed port of almost identical dimension. Talk about trying to put to male parts together, doesnt work. (unfortunatly I did not take a picture of the Battleaxe magwell before I started chopping)

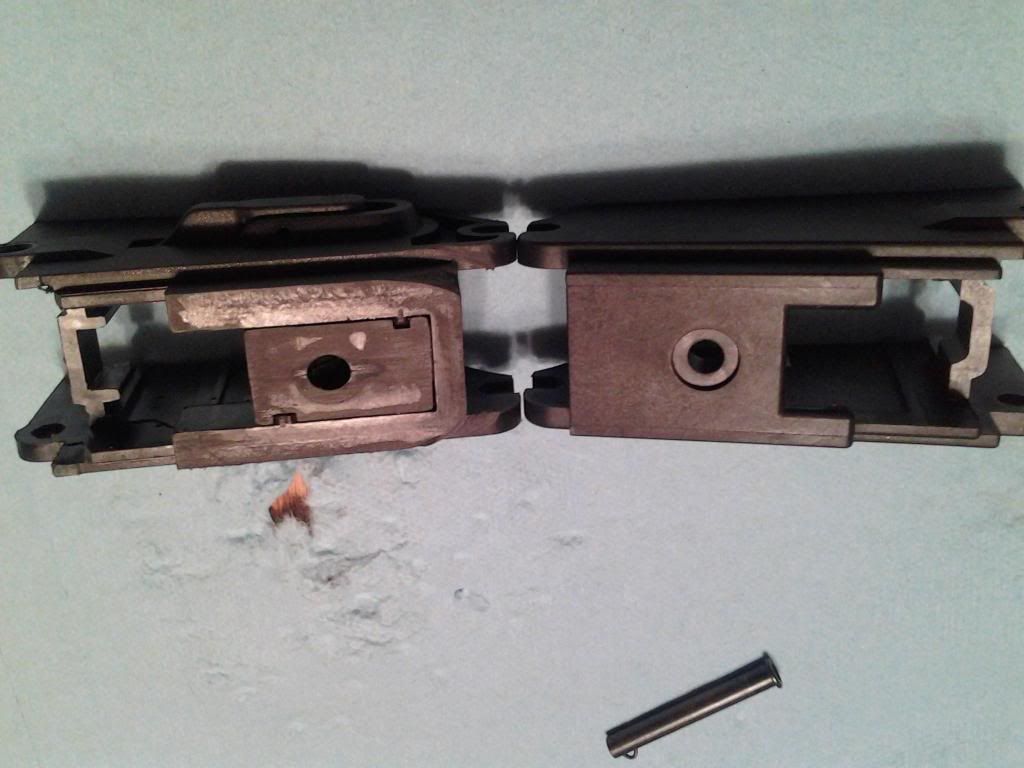

Side by side view of the JG G36 magwell on the left, and the Battleaxe magwell (right) after I finished with the file.

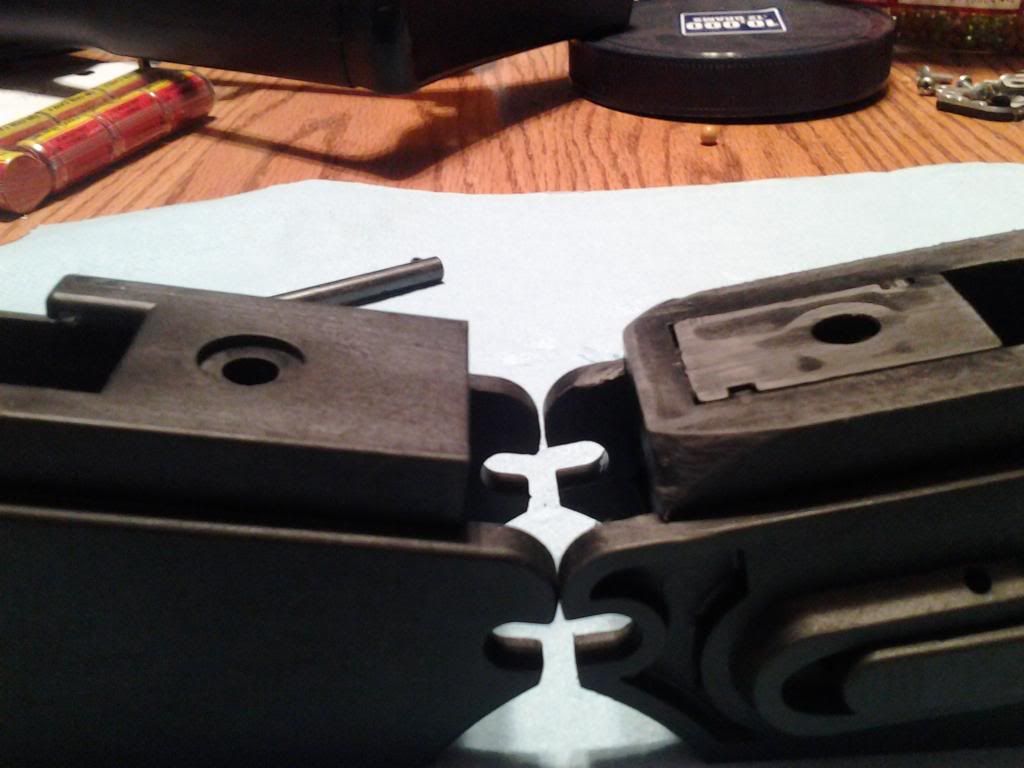

Top shot of the magwells, I ended up grabing a drill bit and boring out the rest of the Battleaxe magwell to match the JG's.


After about 45 minutes, it works perfectly, and I didnt have to scream and yell at airsoft megastore, or return it.
